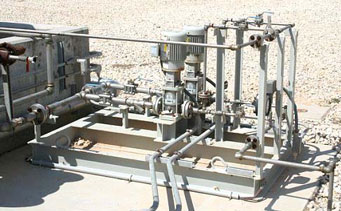

Anhydrous & Aqueous Ammonia Forwarding Pump Package

Skid-Mounted Modular System, Engineered-to-Order

IFS AQAM Series Aqueous/Anhydrous Ammonia Forwarding Packages are designed to pressurize Anhydrous or 19% & 29% Aqueous Ammonia from storage to an Ammonia Flow Control Unit (AFCU). The complete system is designed to minimize field assembly


Benefits:

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service

Industry Standards:

  • Vessels code stamped ASME Section VIII & National Board Registered
  • Piping designed to ANSI B31.1/ANSI B31.3
  • Pipe fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1
  • Complete system designed to API RP 550

Standard Features:

  • FlowSafe Unloading Station
    • Local indication of:
      • Tank level
      • Flow indication
    • Local manual/automated valve operation

Standard Features (Continued):

  • Storage/Forwarding System
    • Vessel storage up to 30,000 gallons
    • Vessel material options:
      • Carbon Steel or 304L
    • Heavy duty forwarding pumps to meet any hydraulic or NPSHA condition:
      • Centrifugal/Gear/Regen Turbine/Mag drive & canned motor
    • Locally Mounted Control Panel

Optional Features:

  • Separate Skid Mounted Pump Forwarding System
  • Unloading Breakaway Couplings
  • PLC Based and Full VFD Control Panel per NEC & NFPA
  • UL or CSA Listed Control Panel Assembly
  • Complete Factory Performance Test
  • Class 1, Div 2 Hazardous Locations
  • Compliance with Plant/Engineering Specifications

Additional Services:

  • “Aspen Plus” Process Simulation Software used to guarantee process conditions
  • Installation / Training / Start – Up Supervision
  • Extended warranty
  • Nationwide Service Network




For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 1-800-795-4068 or send us an email.
