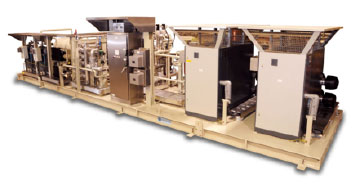

Nitrogen Generation Systems

Modular, Engineered-to-Order, Shipped Ready to Plug In

Integrated Flow Solutions N2GS Series Nitrogen Membrane Systems are designed for applications requiring purities between 95% and 99.95% product nitrogen. In conjunction with our technology partner Air Products, we offer a range of proven technology solutions for High ambient temperatures, fixed dew point control for buffer gas, coil tubing for well servicing and export line commissioning.

Industries


Benefits

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less Than Component Based Site-Built Systems Reducing Overall Project Cost
  • Minimizes Field Erection Time – Shorter Overall Project Delivery Schedule
  • Complete System Function Testing Prior To Shipment
  • 24/7 Customer Service

Industry Standards:

  • Horizontal or Vertical Configuration
  • Vessels Code Stamped ASME Section VIII & National Board Registered
  • Piping Designed to ANSI B31.1/ANSI B31.3
  • Pipe Fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features:

  • Process Validation / Guarantee using “Aspen Plus” Simulation Software
  • ASME scrubbers / separators / coalescers / filters
  • Class 1, Div. 2 Hazardous Locations

Optional Features:

  • Ladder and platform for vertical filter access
  • IEC / CENELEC / CSA compliant control panel, conduit & wiring
  • PLC control system with data highway
  • NACE MR-01-75 latest edition for sour service
  • Pneumatic pressure test after re-assembly
  • Third party inspection by ABS, Lloyd’s, and DNV
  • NACE MR-01-75 latest edition for sour service
  • Compliance with plant / engineering specifications

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 1-800-795-4068 or send us an email.
