IFS Ships Modular Crude Oil Pumping Station

March 27, 2018 Welcome
modular crude oil pumping station

modular-crude-oil-pumping-station

modular crude oil pump interior

modular-crude-oil-pump-interior

crude oil pumping system with crane

crude-oil-pumping-system-with-crane

crude oil pumping container

crude-oil-pumping-container

crude oil pumping skid

crude-oil-pumping-skid

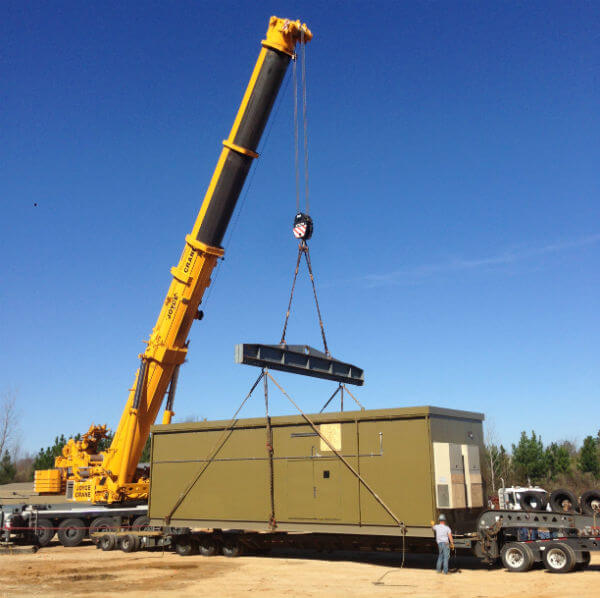

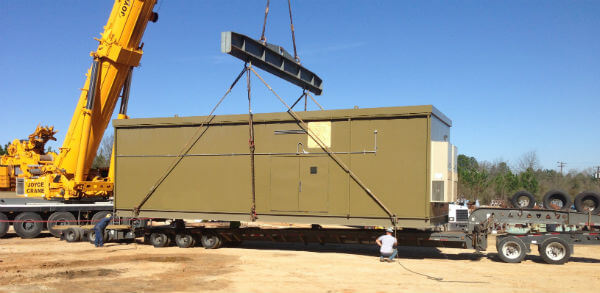

IFS recently completed the design, fabrication, wet testing and shipment of a Modular Crude Oil Pumping Station for Mandaree North Dakota.  The Modular Crude Oil Pump Station included:

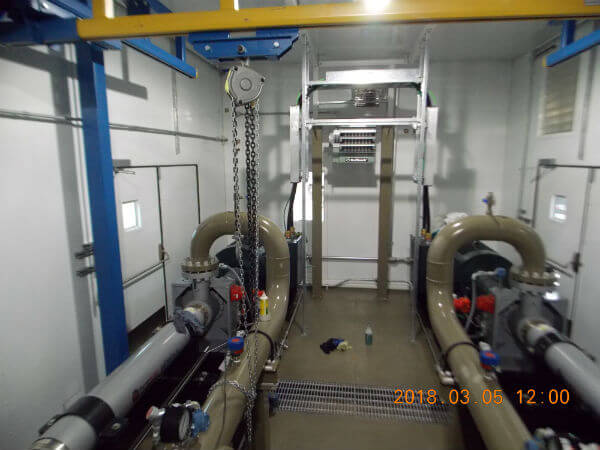

  • Welded I-Beam structure
  • Insulated/heated building
  • Integral sump
  • (2) 100% Crude Oil Pumps/electric motors
  • Overhead Bridge crane/hoist
  • Suction/discharge piping
  • Isolation/check valves
  • Control valves
  • Instrumentation
  • Electrical switchgear with Variable Frequency Drives

The building was divided into a pump room (Class 1 Group D Division 2 electrical area classification) and a switchgear room (unclassified electrical area classification).

The Station Design basis reflected a 40,000 BPD (1,167 GPM) Oil Flowrate, Maximum Discharge pressure of 450 psig, ANSI 600# Piping Design Rating, and a Design Temperature range of -20F to 100F.

IFS scope included the detailed design of the Modular Crude Oil Pumping Station, including P&IDs, General Arrangement Drawings, Structural steel drawings, major component outline drawings, piping isometric drawings, and all electrical drawings.

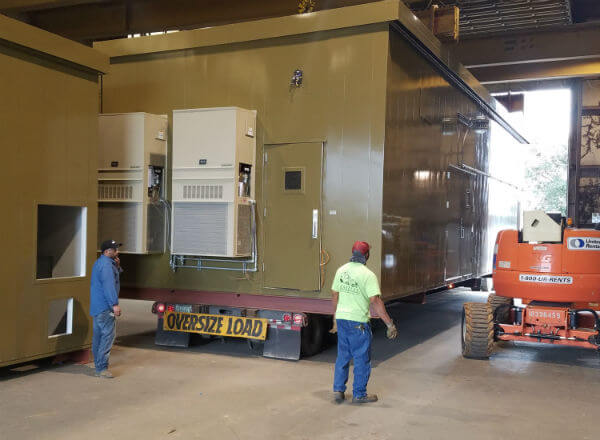

The completed Modular Crude Oil Pumping Station was fully run tested at IFS’s Tyler, Texas facility.  The run test included connecting 460 volt/3 phase/60 hertz electrical power to the switchgear room, connecting the inlet/outlet piping headers to on site tankage, and simulating site conditions with a Programmable Logic Controller. Fluid was circulated through the package to match actual conditions.

This Modular Crude Oil Pump Station is the first of (4) similar stations IFS is supplying to this site in North Dakota.

For more information on IFS’s Modular Pump Stations, please contact IFS at www.ifsolutions.com/Contact Us
