Fuel Gas Conditioning Package Skid-Mounted Modular System, Engineered-to-Order

natural gas conditioning skid packageIntegrated Flow Solutions Fuel Gas Conditioning Skids are designed to protect natural gas fueled engines and turbines from liquid slugs, solids (< 0.1 microns) and liquid aerosols. Additionally, the fuel gas is superheated above the hydrocarbon and water dew points to prevent liquid condensation in the turbine’s combustion chambers. These systems meet or exceed reciprocating engine and turbine manufacturers’ fuel gas quality specifications providing dry, clean fuel to increase the life of the equipment.

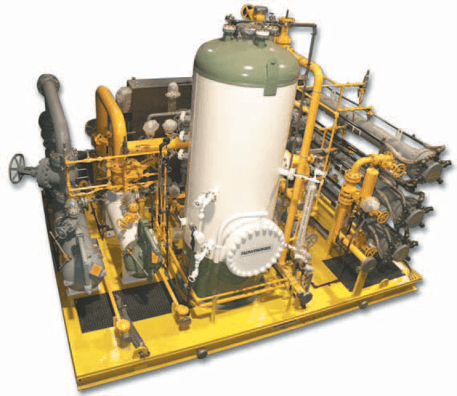

– FGCS-100.0 Pictured at right.

Benefits of Natural Gas Conditioning Skid

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less Than   Component Based Site-Built Systems Reducing   Overall Project Cost
  • Minimizes Field Erection Time – Shorter Overall   Project Delivery Schedule
  • Complete System Function Testing Prior To   Shipment
  • 24/7 Customer Service


Industry Standards



  • Vessels Code Stamped ASME Section VIII &   National Board Registered
  • Piping Designed to ANSI B31.1/ANSI B31.3
  • Pipe Fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1
  • API 14C for Offshore Applications

Standard Features of Fuel Gas Conditioning Skid

  • rocess Validation/Guarantee Using “Aspen Plus”   Simulation Software
  • ASME Scrubbers/Separators/Coalescers/Filters
  • INTEGRAHEAT Electric Process Heaters
  • TEMA Shell & Tube Exchangers
  • Class 1, Div. 2 Hazardous Locations
  • Local Control Panel

Optional Features of Gas Conditioning System

  • Ladder and Platfrom for Vertical Filter Access
  • Michell™ Instruments Hydrocarbon and Water   Dewpoint Measurement and Control
  • IEC/CENELEC/CSA Compliant Control Panel,   Conduit and Wiring
  • PLC Control System with Data Highway
  • NACE MR-01-75 Latest Edition for Sour Service
  • Pneumatic Pressure Test After Re-Assembly
  • Third Party Inspection by ABS, Lloyd’s and DNV
  • Compliance with Plant/Engineering Specifications

Standard Designs of Natural Gas Conditioning Package

  • Power
    • Frame Size Gas Turbines
    • Aero-Derivative Size Gas Turbines
  • Oil & Gas
    • Cross Exchanger Design That Recovers Heat  Loss From Pressure Drops

Additional Services

  • Installation/Training/Start-Up Supervision
  • Extended Equipment Warranties
  • Nationwide Service Network
