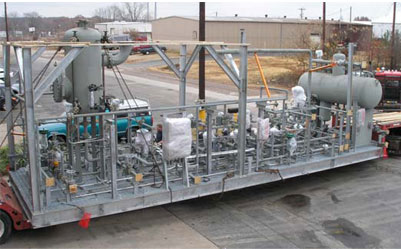

Vapor Recovery System Package

Skid-Mounted Modular System, Engineered-to-Order

Integrated Flow Solutions Vapor Recovery System Packages are pre-designed, packaged and fully tested for a wide range of vapor recovery applications. The complete system includes a process simulation using Aspen Plus® and Aspen Dynamics® process equipment, instruments, valves, & piping integrated on a skid.

Benefits:

Single Source Accountability
Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost

Minimizes field erection time – shorter overall project delivery schedule
Complete system function testing prior to shipment
24/7 Customer service (800-527-8724)

Industry Standards:

Local Control Panel designed to NEC, CSA, or IEC
Piping/tubing designed to ANSI B31.3/ANSI B31.8

Structural Steel Assembly Designed to AWS D1.1

Standard Features:

Modularized Construction
Apen Process Simulation
ASME Scrubbers/Separators/Coalescers/Filters
Socketwelded or Butt Welded Piping

TEMA Shell & Tube Heat Exchangers
Open Beam Skid
Dual Scale Liquid Filled Pressure Gauges

Optional Features:

Full Port
Sized for 60 PSI Instrument Air Supply
Actuators designed for Instrument Gas Supply
Hot Backup Redundant Control
316 SS Trim Materials
350-LF2 Materials
High Temperature Seats
Low Temperature Seats
Discharge Pressure Instrumentation

Oversized Skid
Skid Drain Pan
Custom Skid Decking
Custom Paint
4-20 mA Feedback
Manual Override System
- Jack Screw Type
- De-Clutchable Type

Additional Services:

Installation / Training / Start – Up Supervision
Extended warranty

Worldwide Service Network
Customized Systems
