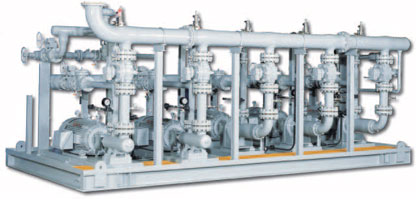

High Pressure Packaged Pump System

Skid Mounted Modular Package Engineered-to-Order

Integrated Flow Solutions High Pressure Packaged Pump Systems are designed to pump various higher viscosity hydrocarbons (<10 centistokes) to high discharge pressures. The complete system includes double or triple screw pump(s), electric motor(s), suction/discharge piping, valving, instrumentation, controls and is designed to minimize field assembly. Ideal for use as fuel oil or heavy oil pipeline pumps.


  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less Than Component Based Site-Built Systems Reducing Overall Project Cost
  • Minimizes Field Erection Time – Shorter Overall Project Delivery Schedule
  • Complete System Function Testing Prior To Shipment
  • 24/7 Customer Service

Industry Standards

  • Vessels Code Stamped ASME Section VIII & National Board Registered
  • Piping Designed to ANSI B31.1/ANSI B31.3
  • Pipe Fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features

  • API 676 Horizontal Double or Triple Screw Pumps
  • Pump Casing Materials from Cast Iron to Carbon Steel
  • WP-II, TEFC, TEAAC or XP Electric Motor Enclosure
  • Motor Voltage – 460 Volt or 2300/4160 Volt
  • Full Pump/Motor Instrumentation Including Vibration, Temperature, Flow & Pressure Monitoring

Standard Features (Continued)

  • Duplex Pump Configuration Providing 100% Stand-By
  • Rigid Structural Steel Base with Curbed Perimeter & Drain to Minimize Environmental Impact
  • Hydrotesting of All Piping
  • High Quality Industrial Coating System

Optional Features

  • All NEMA or IEC Rated Enclosures and Components for Class 1, Div. 1 or Div. 2 Electrical Areas
  • Panelview Operator Interface
  • Microprocessor Controller with INTEGRAFLOWTM Control Software to Monitor Critical Functions & Provide Complete System Control
  • Complete String Test of Package
  • Simplex & Triplex Pump Configurations

Additional Services

  • Nationwide Service Network
  • Installation & Supervision
  • Turn-Key Projects
  • Equipment Leasing Program
  • Extended Equipment Warranties

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
