Instrument Air & Nitrogen Generation Package for Iraq

October 28, 2014 leem0

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Sistema Combinado de Generación de Nitrógeno y Aire de Instrumentos para Shell Iraq Petroleum Development (SIPD)

Project Overview

Majnoon in Southern Iraq is one of the world’s largest oil fields. Shell Iraq Petroleum Development (SIPD) won the contract to develop the Majnoon oilfield on behalf of the Iraqi Government’s Southern Oil Company (SOC) in 2009. On September 20, 2013, the first well had been successfully opened and production restarted at Majnoon. The SIPD Majnoon production facility includes sophisticated oil & gas separation, treatment, and transmission equipment.

The Challenge

Solar Turbines ranks as a world leader in industrial turbines and compressors up to 25,000 hp. SIPD contracted Solar Turbines to supply 2 MARS 100 combustion turbines driving two C51-5 / C33 high speed centrifugal compressors to compress produced natural gas into a transmission pipeline. The Solar Centrifugal compressors use nitrogen to pressurize the compressor seals during start up. SIPD and Solar agreed that a combined Instrument Air and Nitrogen Generation Package would be required to supply both instrument air for utility and nitrogen at the site.

Instrument Air and Nitrogen Generation Package Requirements

  • Instrument Air: 150 SCFM @ 125 psig of -40°F instrument air
  • Nitrogen: 50 SCFM of 94% nitrogen with a dew point of at -20°F to -40°F.

Project Contracted By

Solar Turbines

For Use In

Majnoon, Iraq

The IFS Solution

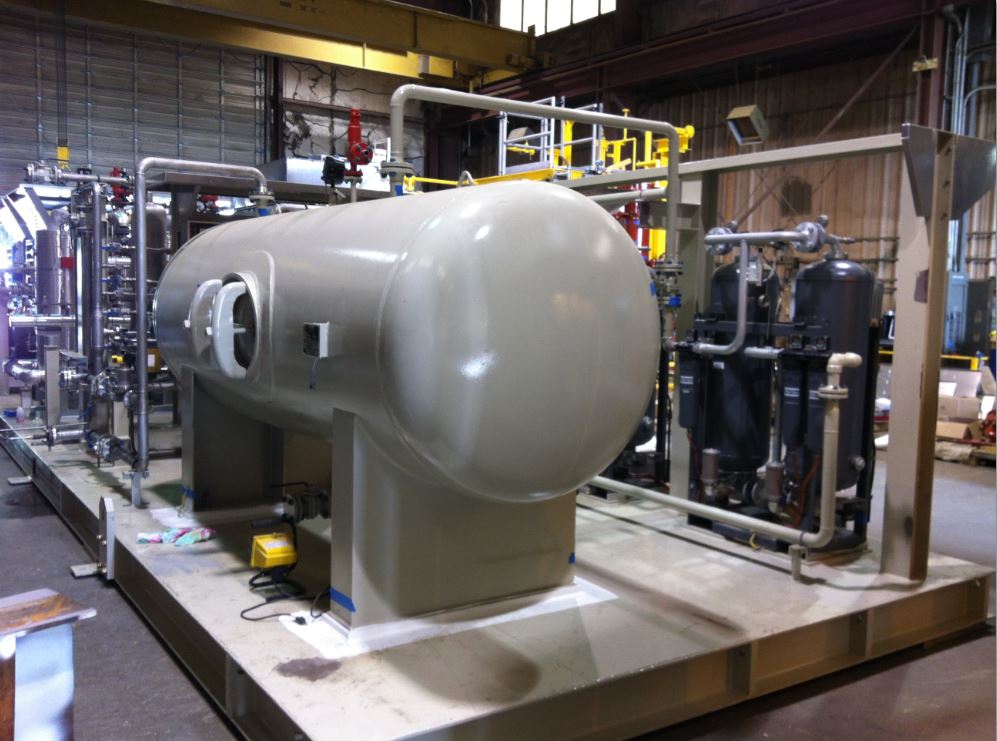

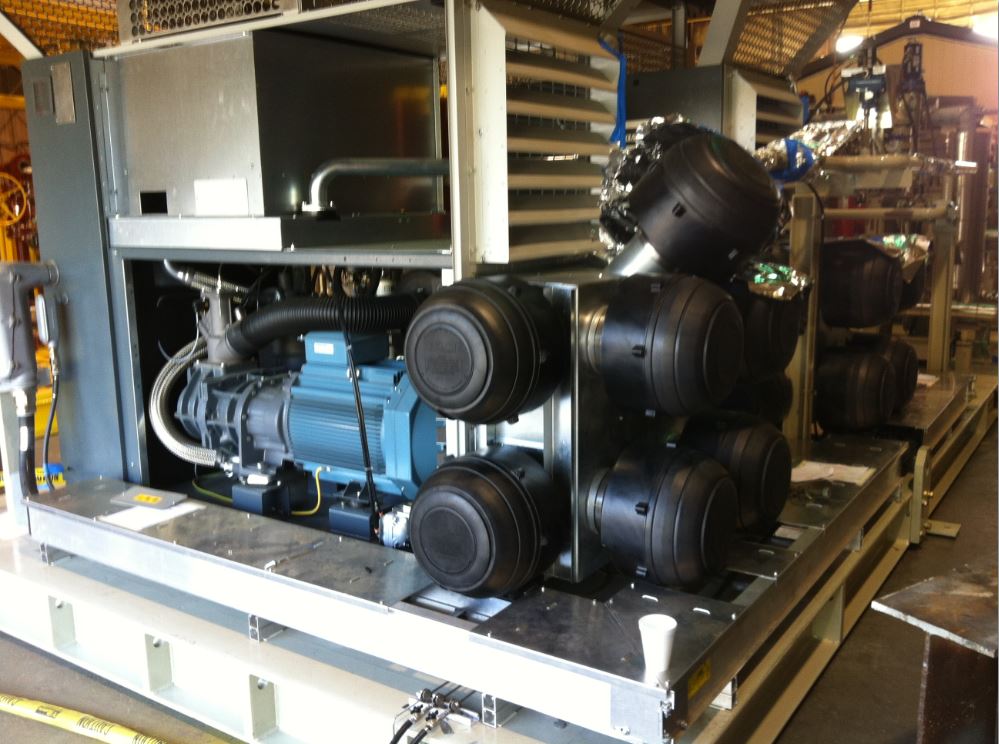

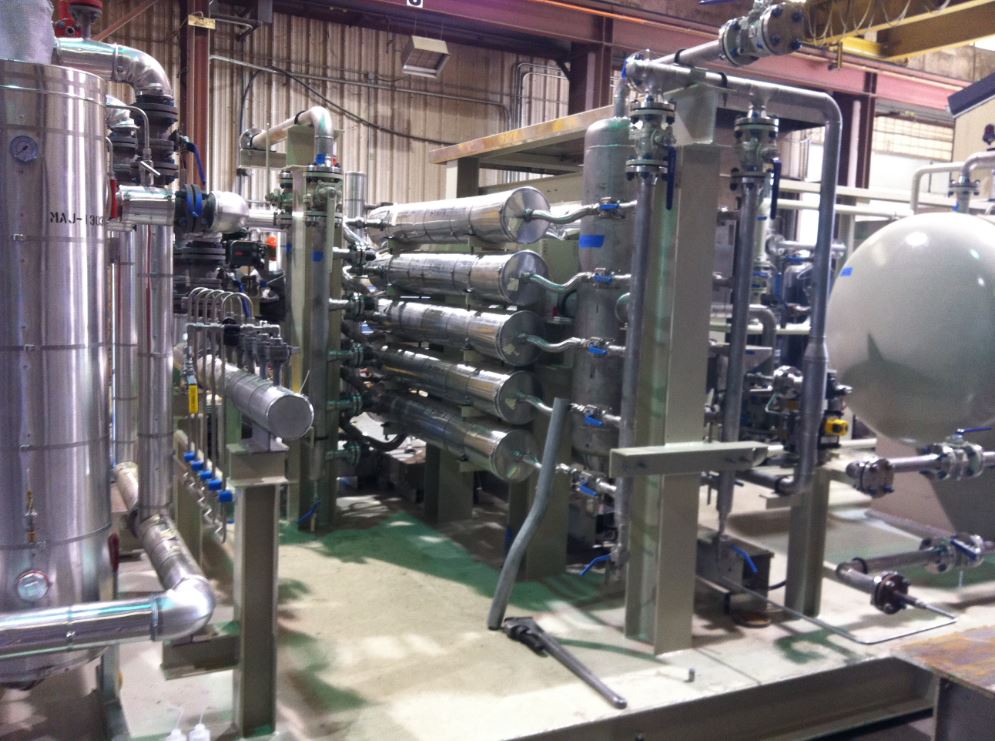

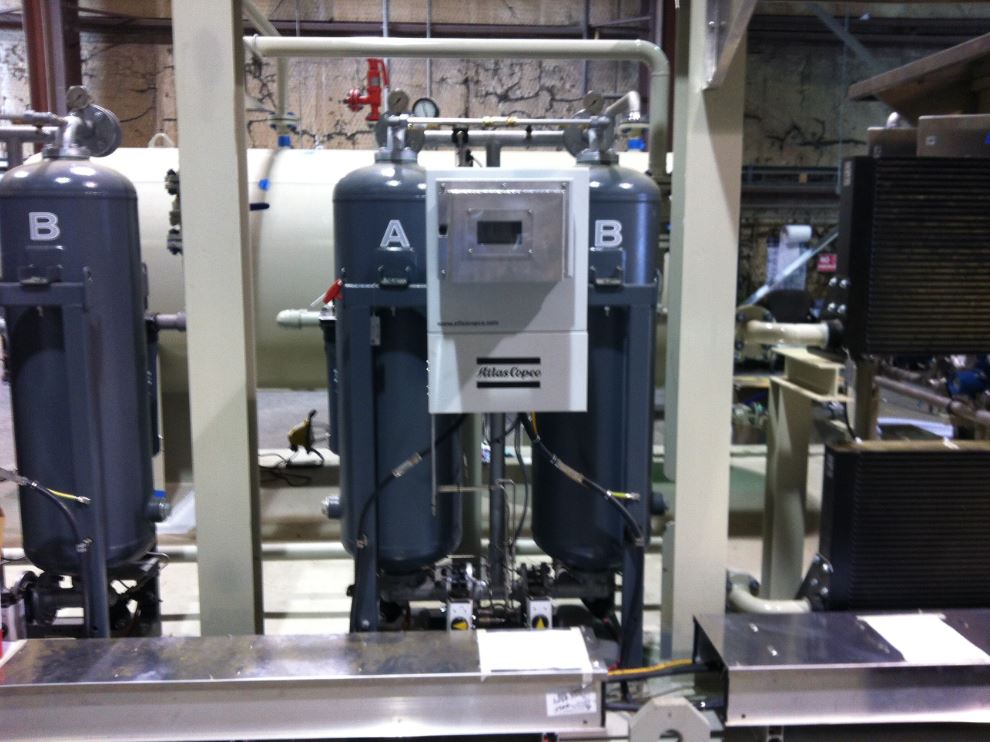

IFS offered to supply a skid mounted, prepackaged, tested Instrument Air and Nitrogen Generation system to meet the project requirements in an accelerated schedule of 16 weeks. Due to the remote location of the package extensive witnessed testing was conducted by both Solar and Shell to minimize the startup time at site and insure trouble free operation.
