Air Quality/NOx Reduction, Skid-Mounted Modular Process Systems Engineered to Suit Your Needs

IFS is a process engineering firm that builds a wide range of modular systems for the Air Quality/NOx Reduction Industry. All of our products are skid-mounted and ready to “plug-in.” Our engineers will build-to-suit according to your exact specifications and can install your completed modular system anywhere in the world.

Below are some examples of what we can do for you.

 Air Quality/NOx Reduction Packages

• SCR Ammonia System
• Cold Ammonia Flow Control Package
• Hot Ammonia Flow Control Package
• Anhydrous Ammonia Unloading Station & Storage/Vaporizer System
• Anhydrous Ammonia Rail or Tank Car Unloading Package
• Aqueous Ammonia Unloading Station & Storage/Forwarding System
• Aqueous Ammonia Unloading Station
• Aqueous Ammonia Forwarding Package
• IntegraHeat™ Electric Process Heating Package
• Electric Process Heater Control Panel
• Automation & Controls

IFS is a process engineering firm that builds a wide range of modular systems for the Air Quality/NOx Reduction Industry. All of our products are skid-mounted and ready to “plug-in.” Our engineers will build-to-suit according to your exact specifications and can install your completed modular system anywhere in the world.

Below are some examples of what we can do for you.

SCR Ammonia System

(ANAM – 400.0)

Integrated Flow Solutions Ammonia Unloading, Storage, Distribution & Vaporization System is designed to provide ammonia (anhydrous or aqueous) reactant to a Selective Catalytic Reduction (SCR) unit for removal of NOx from flue gas. Ammonia is delivered by truck or railcar and unloaded into storage tanks. The ammonia is forwarded to the Ammonia Flow Control Unit (AFCU) which generates ammonia gas for injection into the flue gas upstream of the SCR. IFS provides the complete system.

Cold Ammonia Flow Control Package

(AFCU – 100.0)

Controls the flow of Ammonia from the Ammonia Storage/Forwarding System into an air or flue gas stream. The air is typically heated & pressurized with an electric process heater or low pressure steam heat exchanger.

Cold Ammonia Flow Control Package
Hot Ammonia Flow Control Package

(AFCU – 200.0)

Controls the flow of Ammonia from the Ammonia Storage/Forwarding System into an air or flue gas stream. The hot flue gas is available from the gas turbine exhaust & is typically pressurized with hot gas blowers.

Anhydrous Ammonia Unloading Station & Storage/Vaporizer System

(ANAM – 100.0)

Unloads Anhydrous Ammonia from Rail or Tank Cars, Stores in fully instrumented ASME Storage Vessel, then Vaporizes/Pressurizes to AFCU

Anhydrous Ammonia Rail or Tank Car Unloading Package

(ANAM – 200.0)

Unloads Anhydrous Ammonia from Rail or Tank Cars into ASME Storage Vessel

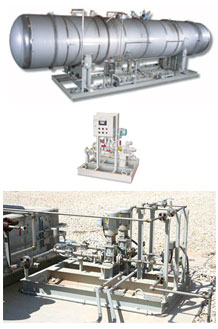

Aqueous Ammonia Unloading Station & Storage/Forwarding System

(AQAM – 100.0)

Unloads 19% & 29% Aqueous Ammonia from Transports, Stores in fully instrumented ASME Storage Vessel, then Pumps to AFCU

Aqueous Ammonia Unloading Station

(AQAM – 200.0)

Unloads Aqueous Ammonia from Transports into a Modular ASME Storage Vessel

Aqueous Ammonia Forwarding Package

(AQAM – 300.0)

Pumps Aqueous Ammonia from ASME Storage Vessel to AFCU

IntegraHeat™ Electric Process Heating Package

(IEPH – 100.0)

Electrically vaporizes anhydrous and aqueous ammonia flowing through a process. Accurate temperature control is maintained with full thyrister power controls modulating the current to the flanged heater element.

Electric Process Heater Control Panel

(CP6012 – 100.0)

Offers convenient, economical control of resistive loads. Completely eliminates the engineering, design, component procurement, assembly and testing steps required to build a control panel.

Automation & Controls

(PACS – 100.0)

Monitors and controls IFS packaged equipment. The controls can be skid-mounted and prewired or remote mounted in an unclassified area.
