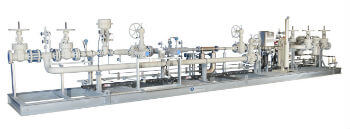

Automated Custody Transfer

Modular, Engineered-to-Order, Shipped Ready to Plug In

Integrated Flow Solutions Automated Custody Transfer Systems are designed for accurate measurement and sampling of various hydrocarbon liquids ranging in viscosity from 2 to 5000 centistokes.

The complete system includes inlet basket strainers, air eliminators, flow meters, back pressure control valve, suction/discharge piping, valves, instrumentation, controls, & is designed to minimize field assembly.

Benefits of IFS Crude Oil Metering Skid

Single Source Accountability
Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost

Minimizes field erection time – shorter overall project delivery schedule
Complete system function testing prior to shipment
24/7 Customer service

Crude Oil Measurement Unit Industry Standards:

Piping designed to ANSI B31.1/ANSI B31.3
Pipe fabrication to ASME Section IX

Structural Steel Assembly Designed to AWS D1.1

Standard Features of IFS Automated Custody Transfer Unit:

PLC Control System with Flow Computer
Basket Strainer with PDI
Air Eliminator
Back Pressure Valve
Thermal Relief Valve
Coriolis, Turbine or Positive Displacement Flowmeter

Temperature Indicator & Transmitter
Pressure Indicator & Transmitter
Prover Connections
Hydro test of all piping
High quality industrial coating system
Meter Prover (Bi-Directional)
All NEMA or IEC rated enclosures and components for Class 1, Div. 1 or Div. 2

IFS Additional Services for Loading & Unloading Process System:

Turn-Key Projects
Installation & Supervision
Extended Equipment Warranty
Nationwide Service Network
