Custody Transfer Metering System

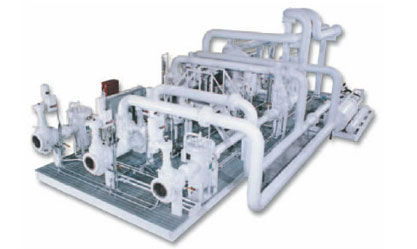

custody transfer metering skidSkid-Mounted Pipeline Metering Skid, Engineered-to-Order

Integrated Flow Solutions Fluid Custody Metering Systems are designed for accurate measurement and sampling of various hydrocarbon liquids ranging in viscosity from 2 to 5,000 centistokes. The complete custody transfer metering skid includes inlet basket strainers, air eliminators, positive displacement or turbine flow meters, back pressure control valve, suction/discharge piping, valving, instrumentation, controls and is designed to minimize field assembly.

Benefits of Your Custody Transfer Metering Skid

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less Than Component Based Site-Built Systems
  • Reducing Overall Project Cost
  • Minimizes Field Erection Time –
  • Shorter Overall Project Delivery Schedule
  • Complete System Function Testing
  • Prior To Shipment
  • 24/7 Customer Service

Industry Standards

  • Vessels Code Stamped ASME Section VIII & National Board Registered
  • Piping Designed to ANSI B31.1/ANSI B31.3
  • Pipe Fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features of Your Pipeline Metering Skid

  • PLC Control System with Flow Computer
  • Basket Strainer with PDI
  • Air Eliminator
  • Back Pressure Valve
  • Thermal Relief Valve
  • Turbine or Positive Displacement Flowmeter
  • Pressure Indicator & Transmitter
  • Double Block & Breed
  • Prover Connections
  • Hydrotesting of All Piping
  • High Quality Industrial Coating System

Optional Features of the Custody Transfer Metering System

  • Rigid Structural Steel Base with Curbed Perimeter & Drain to Minimize Environmental Impact
  • Differential Pressure Switch on Strainer
  • Static Mixer
  • BS&W Monitor
  • Densitometer
  • Diverter Valve
  • Meter Prover (Bi-Directional)
  • Charge Pump
  • Sampling System
  • All NEMA or IEC Rated Enclosures and Components for Class 1, Div. 1 or Div. 2 Electrical Areas
  • Panel View Operator Interface
  • Microprocessor Controller with INTEGRAFLOWTM Control Software to Monitor Critical Functions & Provide Complete System Control
  • Complete String Test of Package

Additional Services

  • Nationwide Service Network
  • Utility System Optimization Studies
  • Turn-Key Projects
  • Equipment Leasing Program
  • Extended Equipment Warranties

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
