Surge Relief System for Fuel Oil Pressure Relief

Modular, Engineered-to-Order, Shipped Ready to Plug In

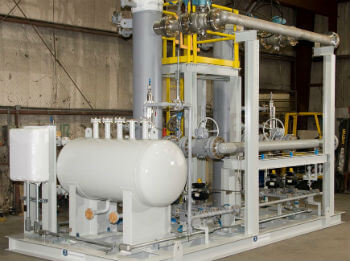

oil pipeline pressure relief system skid

Integrated Flow Solutions SRS Series skid mounted surge relief systems include properly sized fuel oil surge relief valves, accumulators, manifolds and piping with appropriate maintenance provisions like isolation valves and a nitrogen charging system to minimize field assembly.




Benefits of IFS Oil Pipeline Pressure Relief Skid

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service

Fuel Oil Pressure Relief Unit Industry Standards:

  • Vessels code stamped ASME Section VIII & National Board Registered
  • Piping designed to ANSI B31.1/ANSI B31.3
  • Pipe fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features of IFS Fuel Line Pressure Relief Skid:

  • Basket Strainer with PDI
  • Air Eliminator
  • Accumulators
  • Thermal Relief Valve
  • Coriolis, Turbine or Positive Displacement Flowmeter
  • Temperature Indicator & Transmitter
  • Pressure Indicator & Transmitter
  • Double Block & Bleed
  • Hydro test of all piping
  • High quality industrial coating system

Optional Features for IFS Oil & Gas Pressure Relief Systems:

  • Rigid structural steel base with curbed perimeter & drain to minimize environmental impact
  • Differential Pressure Switch on Strainer
  • Diverter Valve
  • All NEMA or IEC rated enclosures and components for Class 1, Div. 1 or Div. 2 electrical areas
  • Panel view Operator Interface
  • Microprocessor controller with Integraflow TM control software to monitor critical functions & provide complete system control
  • Complete string test of package

IFS Additional Services:

  • Turn-Key Projects
  • Installation & Supervision
  • Equipment leasing Program
  • Extended Warranty
  • Nationwide Service Network



For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
