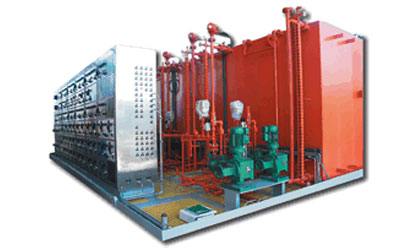

Process Chemical/Methanol Injection Package
Skid-Mounted Modular System, Engineered-to-Order
Integrated Flow Solutions Custom Chemical Injection Systems are designed to safely store and inject various chemicals into process flowlines. The chemicals are stored in skid mounted single or multi-compartment tanks. The chemicals gravity flow into the metering pumps which elevate the pressure to meet the process requirements. The complete system is designed to minimize field assembly.
Benefits
- Single Source Accountability
- Pre-Packaged Modular Design Costs Less Than Component Based Site-Built Systems Reducing Overall Project Cost
|
- Minimizes Field Erection Time – Shorter Overall Project Delivery Schedule
- Complete System Function Testing Prior To Shipment
- 24/7 Customer Service
|
Industry Standards
- Vessels Code Stamped ASME Section VIII & National Board Registered
- Piping Designed to ANSI B31.1/ANSI B31.3
|
- Pipe Fabrication to ASME Section IX
- Structural Steel Assembly Designed to AWS D1.1
|
Standard Features
- Multi-Point Injection of Chemicals by:
- Individual Metering Pumps
- Multi-Headed Metering Pumps
- Injection Rate Control Device (IRCD) with Metering Pump or Fixed Stroke Pump
|
- Heavy Duty API 675 Metering Pumps & API 674 Reciprocating Pumps with:
- Packed Plunger Fluid End
- Single Diaphragm Fluid End
- Double Diaphragm Fluid End
|
Standard Features (Continued)
- Reciprocating Pumps with
- Packed Plunger Fluid End
- Single Diaphragm Fluid End
- Electric Motor or Gas/Air Driven Pumps
|
- Materials of Construction:
- Carbon Steel
- 316SS
- Alloy 20
- Non-Metallic (PVC, Fiberglass)
- Complete Factor Function Test
|
Optional Features
- Rack Mounted Bulkhead Controls for Ease in Operator Interface
- Double Diaphragm Fluid End Leak Detection
- PLC Control System with Data Highway
- IEC/UL/CSA Listed Control Panel Assembly
|
- Class 1, Div. 2 Hazardous Locations
- Complete Factory Performance Test
- Third Party Inspection by ABS, Lloyd’s and DNVStructural Analysis
|
Additional Services
- Installation/Training/Start-Up Supervision
- Extended Warranty
|
- Nationwide Service Network
|
