PBPS Series Packaged Building Pumping System

Modular, Engineered-to-Order, Shipped Ready to Plug In

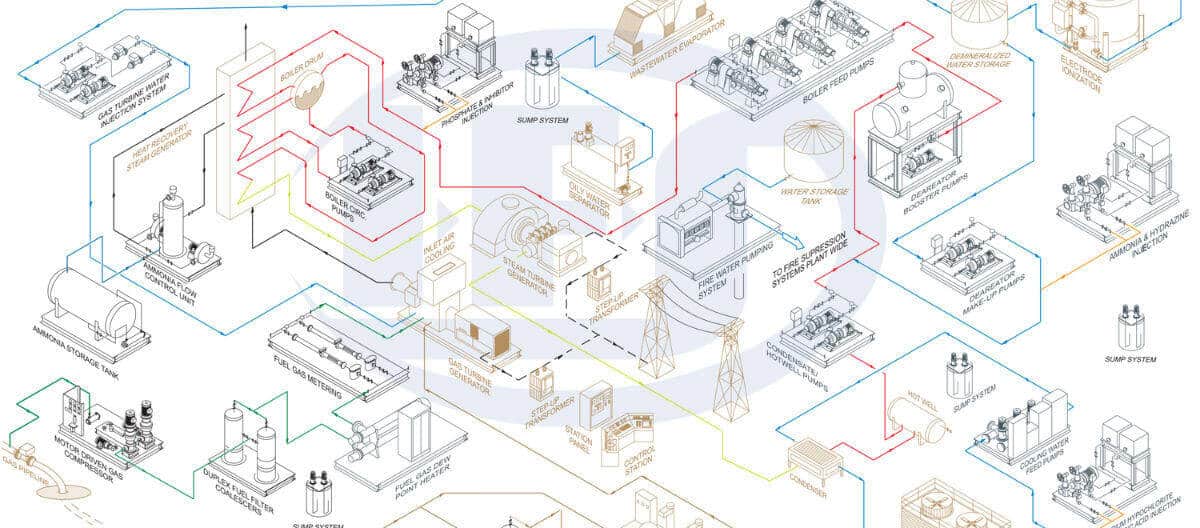

PBPS packaged building pumping systems

Integrated Flow Solutions Packaged Building Pumping Systems are designed to minimize on site installation costs by including the complete pumping system, electrical switchgear, instrumentation, and insulated building enclosure in one transportable module.

PBPS Systems are used for water injection, effluent transfer, pipeline, chemical injection, and firewater systems. The complete system includes pumps, electric motors, suction/discharge piping, valving, instrumentation, controls, & switchgear.

pump enclosure pdf


Benefits of IFS Packaged Building Pumping Systems

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service

PBPS Industry Standards:

  • Vessels code stamped ASME Section VIII & National Board Registered
  • Piping designed to ANSI B31.1/ANSI B31.3
  • Pipe fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features of IFS PBPS Units:

  • Pump Types
    • API 674 Horizontal multiplex plunger
    • ANSI B73.1 or ANSI B73.2 Single stage centrifugal
    • API 610 Single or multistage centrifugal
  • Electric motor or engine (gas or diesel) drive
  • Full pump/motor instrumentation including vibration, temperature, flow, & pressure monitoring.
  • Rigid structural steel base with curbed perimeter & drain to minimize environmental impact
  • Hydrotesting of all piping
  • High quality industrial coating system

Optional Features for PBPS System:

  • Simplex, Duplex, and Triplex pump configurations
  • All NEMA or IEC rated enclosures and components for Class 1, Div. 1 or Div. 2 electrical areas
  • Panelview Operator Interface
  • Microprocessor controller with Integraflow TM control software to monitor critical functions & provide complete system control
  • Complete string test of package

IFS Additional Services:

  • Turn-Key Projects
  • Installation & Supervision
  • Equipment leasing Program
  • Extended Equipment Warranty
  • Nationwide Service Network

pump enclosure pdf

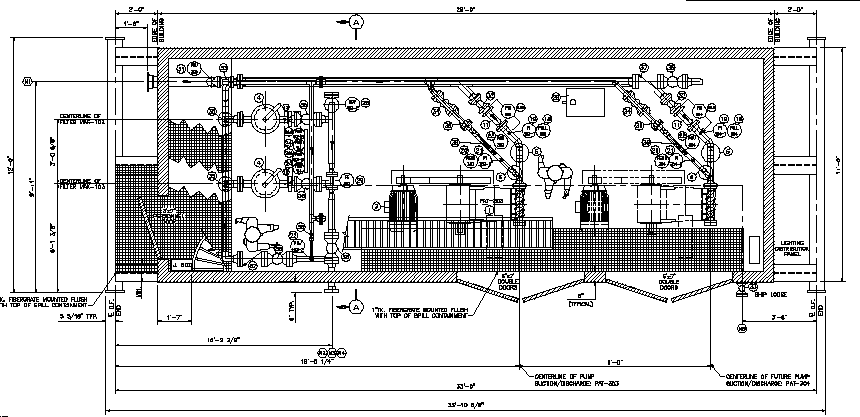

PBPS Plans

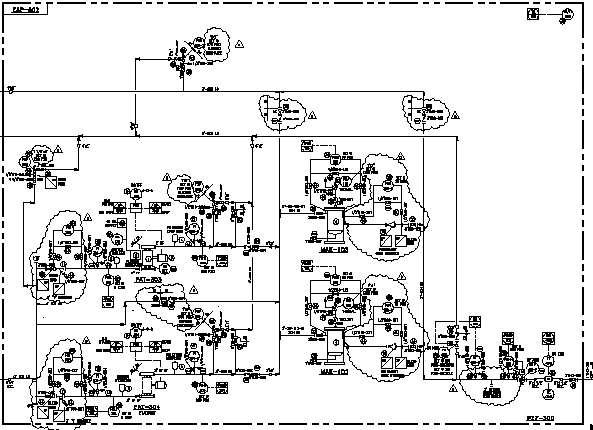

packaged building pumping systems plan


QTY PUMPS FLOW (GPM) DISCHARGE PRESSURE (PSIG) LENGTH – X WIDTH – Y HEIGHT – Z WEIGHT – LBS
2 60 1500 40 12 12 14,000
2 120 1500 45 12 12 16,000
2 650 1000 55 12 12 24,000
2 1200 150 50 12 12 18,000





For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
