Horizontal Multistage Centrifugal Pump System

Modular, Engineered-to-Order, Shipped Ready to Plug In

horizontal multistage centrifugal pump

Integrated Flow Solutions PSHM Series Horizontal Multistage Pumping Systems are designed to transfer various industrial liquids (water, hydrocarbon, chemicals, etc.) from one location to another.

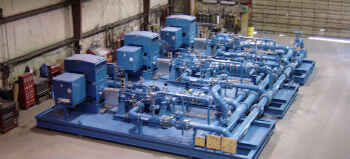

The complete system includes multiple horizontal multistage centrifugal pumps, electric motors, suction/discharge piping, valves, instrumentation, controls, & is designed to minimize field assembly.


Benefits of IFS Multistage Horizontal Pumping Systems

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service

Multistage Centrifugal Pump Unit Standards:

  • Vessels code stamped ASME Section VIII & National Board Registered
  • Piping designed to ANSI B31.1/ANSI B31.3
  • Pipe fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features of IFS Multistage Centrifugal Pump Assembly:

  • API 610 Horizontal multistage centrifugal pumps
  • Sleeve/ball pump bearing system/sleeve motor bearing system – ring oil lube
  • Pump materials from carbon steel to duplex stainless steel
  • WP-II, TEFC, TEAAC, or XP electric motor enclosure
  • Motor voltage – 2300 volt or 4160 volt
  • Full pump/motor instrumentation including vibration, temperature, flow, & pressure monitoring.
  • Rigid structural steel base with curbed perimeter & drain to minimize environmental impact
  • Hydrotesting of all piping
  • High quality industrial coating system

Optional Features for Horizontal Multistage Pump Skids:

  • Simplex, Duplex, and Triplex pump configurations
  • All NEMA or IEC rated enclosures and components for Class 1, Div. 1 or Div. 2 electrical areas
  • Panelview Operator Interface
  • Microprocessor controller with Integraflow TM control software to monitor critical functions & provide complete system control
  • Complete string test of package

IFS Additional Services:

  • Turn-Key Projects
  • Installation & Supervision
  • Equipment leasing Program
  • Extended Equipment Warranty
  • Nationwide Service Network



For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
