Unloading Station Packages

Skid-Mounted Modular System, Engineered-to-Order

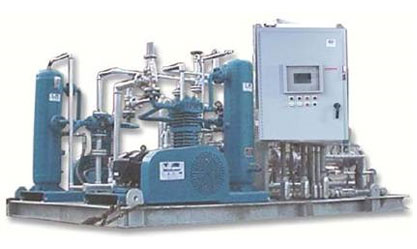

IFS ANAM Series Anhydrous Ammonia Rail or Tank Car Unloading Packages are designed to unload Anhydrous Ammonia from railroad cars and truck transports into a modular Storage/Forwarding System which includes a storage tank, vaporizer, instrumentation, & controls. The  complete system is designed to minimize field assembly.



Benefits of the rail tank car unloading skid:

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service

Industry Standards:

  • Vessels code stamped ASME Section VIII & National Board Registered
  • Piping designed to ANSI B31.1/ANSI B31.3
  • Pipe fabrication to ASME Section IX
  • Structural Steel Assembly Designed to AWS D1.1
  • Complete system designed to API RP 550 & K61.1

Standard Features of the tank car unloading package:

  • IntegraSafe Unloading Station
    • Local indication of:
      • Tank level
      • Tank pressure
      • Flow indication
    • Local manual/automated valve operation

Standard Features (Continued):

  • Storage/Forwarding System
    • Vessel storage up to 30,000 gallons
    • Single & Double wall carbon steel vessels
    • Integraheat™ Electric Vaporizer ASME Code Stamped (Locally Mounted)
    • Full Thyrister (SCR) Control Panel with Redundant Safety Shutdown System (Locally Mounted) per NEC & NFPA
  • Complete factory function test

Optional Features:

  • UL or CSA Listed Heater and Control Panel Assembly per NEC & NFPA
  • Class 1, Div 2 Hazardous Locations
  • Compliance with Plant/Engineering Specifications

Additional Services:

  • “Aspen Plus” Process Simulation Software used to guarantee process conditions
  • Installation / Training / Start – Up Supervision
  • Extended warranty
  • Nationwide Service Network

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
