Regulator Skids & Gas Pressure Reducing Stations

Modular, Engineered-to-Order, Shipped Ready to Plug In

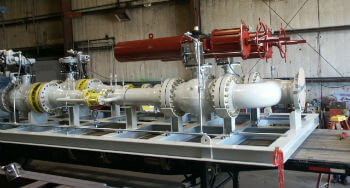

natural gas pressure reducing station design

Integrated Flow Solutions Gas Pressure Reduction Stations are pre-designed, packaged and fully tested for a wide range of pipeline applications.

The complete system includes a process simulation using Aspen Plus® and Aspen Dynamics®, local control panel, instruments, tubing, valves, fast acting and motor actuators, and filtration integrated on the skid.


IFS Gas Pressure Reducing Station Industry Standards:

  • Local Control Panel designed to NEC, CSA, or IEC
  • Piping/tubing designed to ANSI B31.3/ANSI B31.8
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features of IFS Pressure Regulating Station:

  • Reduced Port
  • Sized for 80 PSI Instrument Air Supply
  • Plated Trim Materials
  • Carbon Steel Materials
  • Fire Safe
  • Open Beam Skid
  • Dual Scale Liquid Filled Pressure Gauges

Optional Features of IFS Pressure Reducing System Skid:

  • Full Port
  • Sized for 60 PSI Instrument Air Supply
  • Actuators designed for Instrument Gas Supply
  • Hot Backup Redundant Control
  • 316 SS Trim Materials
  • 350-LF2 Materials
  • High Temperature Seats
  • Low Temperature Seats
  • Discharge Pressure Instrumentation
  • Oversized Skid
  • Skid Drain Pan
  • Custom Skid Decking
  • Custom Paint
  • 4-20 mA Feedback
  • Manual Override System
    • Jack Screw Type
    • De-Clutchable Type

Benefits of IFS Natural Gas Regulator Station:

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component-based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service (800-527-8724)

Applications Related to IFS TEG Regeneration Package

  • Installation / Training / Startup Supervision
  • Extended warranty
  • Worldwide Service Network
  • Customized Systems



For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
