Modular, Engineered-to-Order, Shipped Ready to Plug In

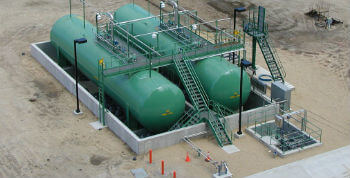

Integrated Flow Solutions Truck or Railcar loading and/or unloading equipment including complete tank farm engineering, design, & fabrication. Hydrocarbon is delivered by truck or railcar and unloaded into storage tanks. Pumps forward the hydrocarbons to a pipeline or custody transfer skid.
Benefits of IFS Truck and Railcar Unloading Systems
Single Source Accountability
Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
Minimizes field erection time – shorter overall project delivery schedule
Complete system function testing prior to shipment
24/7 Customer service
Truck & Railcar Loading/Unloading System Industry Standards:
Vessels code stamped ASME Section VIII & National Board Registered
Piping designed to ANSI B31.1/ANSI B31.3
Pipe fabrication to ASME Section IX
Structural Steel Assembly Designed to AWS D1.1
Complete system designed to industry standards
Standard Features of IFS Railcar & Truck Unloading Unit:
IntegraSafe Unloading Station
Local indication of:
Tank level
Tank pressure
Flow indication
Local manual/automated valve operation
Storage System
Vessel storage up to 65,000 gallons
Single & Double wall carbon steel vessels
Unloading Pumps
ANSI Centrifugal Pumps & Electric Motors
Sliding Vane or Gear Pumps & Electric Motors
Loading Pumps
ANSI Centrifugal Pumps & Electric Motors
API 610 Centrifugal Pumps & Electric Motors
Locally Mounted Control Panels
Motor Starters
Instrumentation for alarms & shutdowns
Complete Factory function Test
Optional Features Truck and Railcar Loading/Unloading Units:
Class 1, Div 2 Hazardous Locations
Compliance with Plant/Engineering Specifications
IFS Additional Services for Loading & Unloading Process System:
“ Aspen Plus” Process Simulation Software used to guarantee process conditions
Installation / Training / Start – Up Supervision
Extended warranty
Nationwide Service Network
For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
Contact Us
Why a Modular System?
Lower Cost: Reduce field labor, construction time, and overall project expense
Better Built & More Reliable: Fabricated and tested in controlled conditions for consistent performance
Delivered Ready for Operation: Fully integrated systems designed for faster installation and startup
Single Source Accountability: One partner responsible for design, fabrication, and system integration
