Chemical Injection/Feed Systems

Skid-Mounted Modular Packages With Chemical Metering/Dosing Pumps, Engineered-to-Order

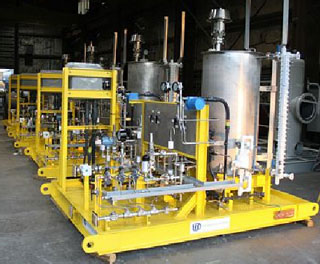

IFS Standard Chemical Injection Systems are predesigned, packaged and fully tested for a wide range of liquid chemical treatment applications.The complete system includes a chemical storage tank, two 100% metering/dosing pumps, instruments, tubing, valves, calibration column and filtration.


Benefits

  • Single Source Accountability
  • Pre-Packaged Modular Design Costs Less than component based site built which reduces overall project cost
  • Minimizes field erection time – shorter overall project delivery schedule
  • Complete system function testing prior to shipment
  • 24/7 Customer service (800-527-8724)

Industry Standards

  • Chemical storage tank meet UN31A
  • Piping/tubing designed to ANSI B31.1/ANSI B31.3
  • Structural Steel Assembly Designed to AWS D1.1

Standard Features

  • Flows From 0.1 – 1000 GPH
  • Pressures From 50 – 1800 PSIG
  • Heavy Duty API 675 Metering/Dosing Pumps or API 674 Reciprocating Pumps with
    • Packed Plunger Fluid End
    • Single Diaphragm Fluid End
  • Totally Enclosed Fan Cooled (TEFC) Motors

Standard Features (Continued)

  • Intermediate Bulk Container (IBC)
    • 304SS Standard Construction
    • UN31A Rated
    • Sloped Bottom
  • 316 Stainless Steel Materials Of Construction
    • Alloy 20
    • Non-Metallic (PVC, CPVC)
  • Offshore Ceram Kote Paint System
  • Large Dial Liquid Filled Pressure Gauges

Optional Features

  • High And Low Level Switches
  • Tank Gooseneck or Flame Arrestor
  • 316 Stainless Steel Tank
  • Discharge Pressure Instrumentation
  • Start/Stop Station
  • Skid Drain Pan
  • Alloy 20 & Non-Metallic (PVC, CPVC) Materials Of Construction

Additional Services

  • Installation / Training / Start – Up Supervision
  • Extended warranty
  • Nationwide Service Network
  • Customized Systems

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
