Removal of Dangerous H2S from Natural Gas

June 12, 2015 leem0
IFS Fuel Gas Conditioning Membrane Packages are Used to Remove High Levels of H2S from Natural Gas

As a manufacturer of modular, engineered process  packages  for use in the Oil & Gas industry all over the world, IFS helps customers to overcome some of the most extreme challenges in remote locations, as we did in the Iraq Badra Field where the customer was experiencing  dangerously high levels of hydrogen sulfide gas (H2S).

The Challenge
In 2013, a multi-national Engineering, Procurement and Construction company (EPC) developing a central processing facility in the Wasit province of Iraq encountered a potential dangerous and damaging problem. High levels of H2S, at times  exceeding 45,000 ppm, were found in the site’s natural gas.

High levels of H2S create a lethal working environment for employees, and H2S-related corrosion can severely shorten the life and performance of the downstream equipment. In addition, if the gas is used as an ignition source, high levels of H2S violate emission guidelines.

The project engineer from the EPC had to quickly find a way to condition the gas, stay within tight budget restrictions and complete the project in around seven months. “We faced some extreme budget limitations and extreme deadline limitations,” he said.

The Solution
Integrated Flow Solutions (IFS) was one of many bidders on the project but the only manufacturer capable of providing a technology that did not require a lot of additional pretreatment and compression upstream. “We chose IFS because we had worked with them on a previous project,” the engineer said. “We knew they had the right technology and an experienced and dedicated project management team. Their approach could minimize operating costs and meet our project specifications.”

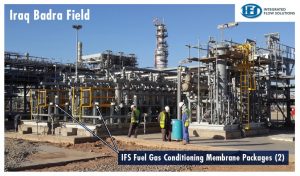

IFS delivered two Fuel Gas Conditioning Membrane packages skid-mounted and featuring membranes made by PoroGen to be suitable for H2S gas removal. These membranes are manufactured from high performance polyether ether ketone (PEEK) polymers. Unlike traditional polymer membranes, PEEK membranes are resistant to the liquids that can harm conventional membranes.

The IFS system solved the problems of cost and ongoing maintenance as the system is less complex, requires fewer rotating components, eliminates expensive pretreatment downstream and operates effectively under varying process conditions. This vastly reduces the “down time” for maintenance.

While the skid package was considered a “plug and play” solution requiring few adjustments during installation and little ongoing maintenance during operation, IFS engineers provided hands-on support to the field team in the remote Iraqi region.

The IFS team’s presence onsite allowed them to address an unexpected issue that arose – high levels of condensation in the gas stream. Experienced engineers from IFS’ headquarters in Texas collaborated with the local engineer working on the start-up and devised a way to remove condensate from the system, a design feature that is now incorporated into all membrane skids.

“The IFS system runs more than 98% of the time,” the project engineer said. “The system’s field performance exceeds the advertised value. We have very little down-time and are able to run around the clock. Knowing IFS, I put my trust in IFS. They can find solutions.”

See Images of  the H2S Removal (a.k.a. Gas Sweetening) Skids being completed at the IFS manufacturing plant in Texas  and Read the Project Synopsis.

Download PDF:  IFS H2S Removal Skids Iraq Badra Field
